How can I add a line at the bottom of the header at an exact height?

Questions
1

I have this so far:

#set page(
  "a4",
  margin: (top: 25mm, x: 20mm, bottom: 10mm),
  header: [
    #place(right, dy: 4mm, link("www.example.com", image("logo.png", width: 25mm)))
    #line(length: 100%)
  ],
)

But I don’t know how to place the line exactly 25 mm from the top.
I’ve tried adjusting the line’s start and end positions, but whatever I do it won’t go below 17 mm.

What I want is to draw a line separating the header from the body precisely at that point. The same applies to the footer.

2

I also tried with grid and place, but no result.

3

This won’t work because of the header-ascent parameter of page. See Page Function – Typst Documentation

header-ascent
The amount the header is raised into the top margin.

Default: 30% + 0pt

Visual representation of what you are trying to do
#set rect(width: 100%, height: 100%, fill: aqua)

#let show-size = {
  layout(size => {
    [#calc.round(size.width.cm(), digits: 2) cm #sym.times #calc.round(size.height.cm(), digits: 2) cm.]
  })
}

#set page(
  "a4",
  margin: (top: 25mm, x: 20mm, bottom: 10mm),
  header: [#rect(show-size)],
  footer: [#rect(show-size)],
)
#rect(fill: gray)[What you are trying to use
#show-size]

#set rect(inset: 0pt)
#set page(
  header-ascent: 0cm,
  footer-descent: 0mm,
)
#rect(fill: gray)[The full page
#show-size]

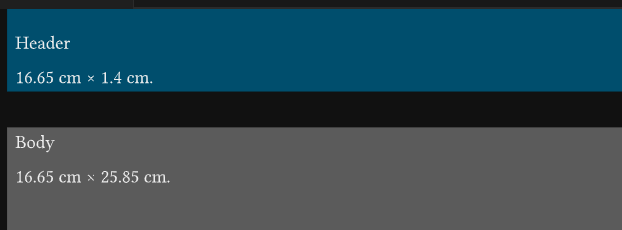

image622×230 10.1 KB

If you add

#set page(
  header-ascent: 0cm,
  ...
)

then you will have access to the full size of the header. Not that I recommend that approach.

You could consider using the background parameter of page instead of header.

#set page(
  "a4",
  margin: (top: 25mm, x: 20mm, bottom: 10mm),
  background: {
    place(top + left, dx: 25mm, line(
      // The red line is 25mm long, to visualize
      length: 25mm,
      angle: 90deg,
      stroke: red,
    ))
    place(top + left, dy: 25mm, line(length: 100%)) // This is the line you want
  },
)

And of course readjust your margins.

1 Like
5

If the image is in the correct spot, then semi-manually extend the line:

#set page(
  margin: (top: 25mm, bottom: 10mm, x: 20mm),
  header: {
    place(right, dy: 4mm, link("www.example.com", rect()))
    context place(dx: -page.margin.left, dy: 25mm, line(
      length: 100% + page.margin.left + page.margin.right,
    ))
  },
)

#lorem(50)

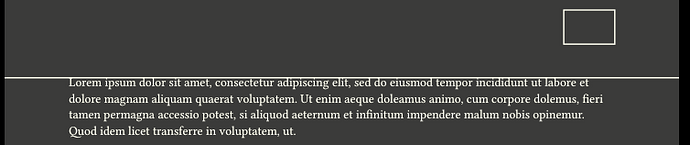

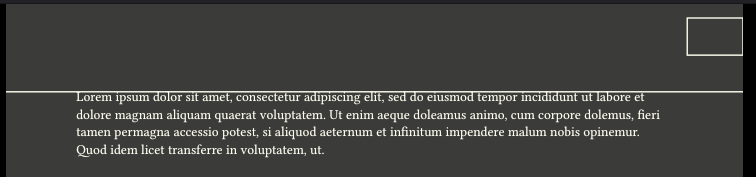

image754×159 22.6 KB

If not, then don’t suffer and use background like @vmartel08 suggested:

#set page(
  margin: (top: 25mm, bottom: 10mm, x: 20mm),
  background: {
    place(right, dy: 4mm, link("www.example.com", rect()))
    place(dy: 25mm, line(length: 100%))
  },
)

#lorem(50)

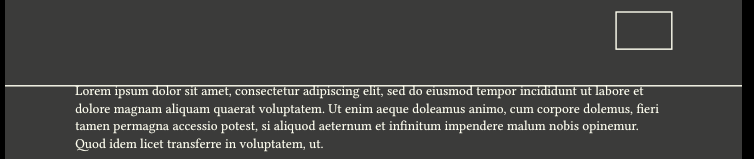

image756×177 22.8 KB

The stroke issue: Add support for inside/center/outside strokes (change stroke bounding box). Zero page margins issue · Issue #5741 · typst/typst · GitHub.

Where to put both is also a question of semantics. If they are meant to live within a header specifically, then it makes more sense to put it there, but always consider the implementation cost. It not always worth it, especially if the output is identical.

1 Like
6

Thank you both. Now the problem I have is how to create a gap between the line and the first line of text, something that must be applied in every page.

7

Just set the top margin to more than 25mm for the body. Or the header-ascent for the header.

8

Indeed, I was just playing with that now. Many thanks.

1 Like
