How can I change the font of the tick-labels?

Questions
1

Trying to assign the tick-labels a different font, but it does not work. The selector lq.diagram works, however, but not for the tick-labels.

#show lq.selector(lq.tick-label): set text(
  size: .8em,
  font: "Arial"
  )

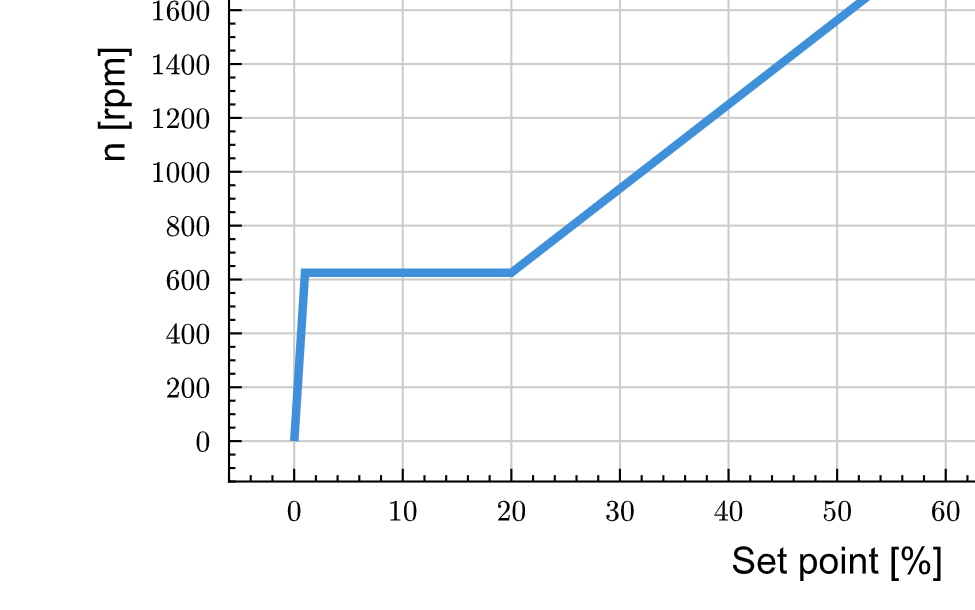

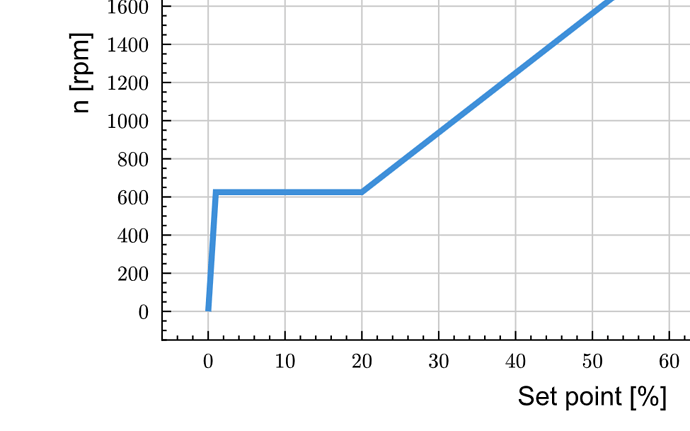

grafik
grafik975×610 62.6 KB

What am I doing wrong?

2

This is an example given by @MAX2:

#import "@preview/lilaq:0.6.0" as lq
#import "@preview/zero:0.6.1": set-num

#set-num(math: false)
#set page(margin: 5mm, paper: "a4")

#show lq.selector(lq.diagram): set text(font: "Arial")

#let data_x = (0, 1)
#let data_y = (0, 1)

#lq.diagram(
  width: 100%,
  height: 100%,
  lq.plot(data_x, data_y),
)

For some reason, it works in my Tinymist/VSCode setup as well as in typst.app.

I sent him my complete code file using PM for a check, we assume there is something in my typ file context keeping this font setting from working…

3

Curious! Your code should work just fine @Matze , using lq.selector(lq.tick-label). Can you provide a full example of your code?

4

I made a MWE.

Seems I don’t need much to reproduce:

#import "@preview/lilaq:0.6.0" as lq

#show lq.selector(lq.diagram): set text(
  font: "Arial"
  )
#show lq.selector(lq.tick-label): set text(
  font: "Arial",
  )

#align(center,
lq.diagram(
  title: "abcdefghijklmnopqrstuvwxyz",
  xlabel: "abcdefghijklmnopqrstuvwxyz",
  ylabel: "abcdefghijklmnopqrstuvwxyz",
  yaxis: (
    exponent: none,
    mirror: false,
    ),
  xaxis: (
    exponent: none,
    mirror: false,
    ),

  lq.plot(
    (0,1,20,80,100),
    (0,625,625,2500,2500),
  )
))

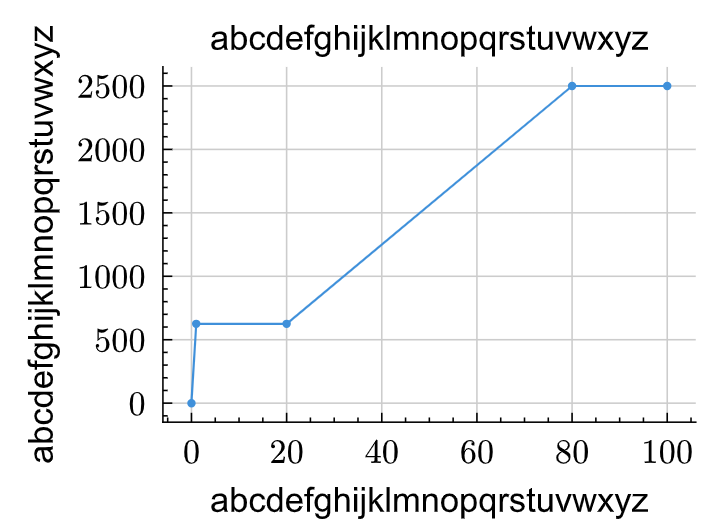

grafik
grafik714×528 62.6 KB

You can play with the lines 4…10 (the #show rules), but it never comes right.

5

Aha, I get it! Your example has the fix from How to change diagram font in lilaq - #3 by Mc-Zen contained! That’s why it works.

6

Ah, you wanted also the ticks!

Yes, for precise formatting, Zero uses math mode by default. Setting its parameter math to false allows you to use a non-math font. If you have a math font at hand that looks similar to your font, you can also configure the math font with show math.equation: set text(font: "...") . Just for explaining and completeness :)
