How could I draw lines and write text along sections and subsections in the margin?

[Remy]

Hello,

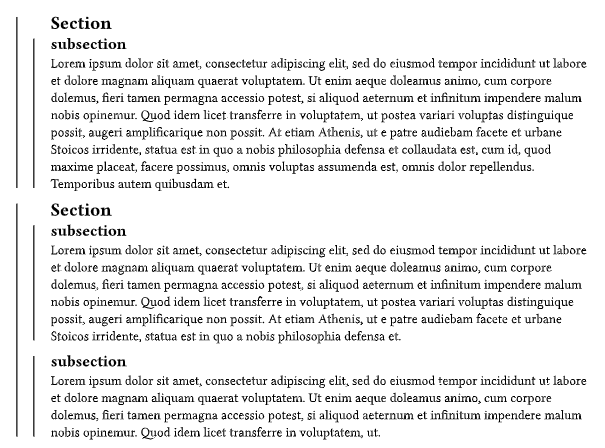

I would like the draw lines along my sections in my document in the margin and add text/label to them. I’ve tried something using blocks to show what I would like to have, but it seems a bit hacky and I don’t see how to add text to it until now.

#block(stroke: (left: black), outset: (left: 10mm, rest: 0mm))[
  = Section<test_section>

  #block(stroke: (left: black), outset: (left: 5mm, rest: 0mm))[
    == subsection
    #lorem(100)
  ]
]

#block(stroke: (left: black), outset: (left: 10mm, rest: 0mm))[
  = Section<test_section>

  #block(stroke: (left: black), outset: (left: 5mm, rest: 0mm))[
    == subsection
    #lorem(80)
  ]

  #block(stroke: (left: black), outset: (left: 5mm, rest: 0mm))[
    == subsection
    #lorem(50)
  ]
]

So I would like to add for example the name of the section and subsection vertically on their corresponding line to have a kind of quick overview when the sections run over several pages for example.
Do you have any hint or idea to handle this? Thanks!

[vmartel08]

Maybe not the final solution but could help:

• How to create an adaptive vertical line that dynamically spans the height of its containing box/block
• How to draw vertical line in grid column connecting/aligning end points with content items in another grid column
• And more: https://forum.typst.app/search?context=topic&context_id=7791&q=Vertical%20line&skip_context=true

[Remy]

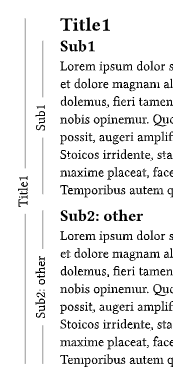

Oh thanks! I’ve tried several searches but not this (obvious) one… There are some nice ideas here… In the meantime, I’ve managed to add the text I wanted with something like this:

#block(stroke: (left: gray), outset: (left: 10mm, rest: 0mm))[
  #place(
    horizon + left,
    dx: -10mm - 0.5em,
    rotate(-90deg, reflow: true, box(fill: white, outset: (x: 0.5em), [#text(black, [Title])])),
  )
  #heading(level: 1, [Title])
  #lorem(100)
]

I’m going to clean it and improve it a bit with your links before posting the final result.
