How to center tables in rectangles?

Questions
, ,
1

Hi!

I want to create some labels to laminate them after printing.

Atm I’m doing it like this:

#set page(
  paper: "a4",
  margin: (left: 15mm, right: 15mm, top: 15mm, bottom: 15mm),
)

#place(
  top + left,
  dx: 0mm,
  dy: 0mm,
  rect(width: 84mm, height: 42mm, stroke: 2mm)
)
#place(
  top + left,
  dx: 96mm,
  dy: 0mm,
  rect(width: 84mm, height: 42mm, stroke: 2mm)
)
#pad(top: 13mm, left: 20mm)[
  #stack(dir: ltr,
    table(
      align: center,
      stroke: none,
      [#text(size: 18pt, weight: "bold")[Samsung 960GB]],
      [#text(size: 14pt)[SM863a]]
    ),
    48mm,
    table(
      align: center,
      stroke: none,
      [#text(size: 18pt, weight: "bold")[Samsung 128GB]],
      [#text(size: 14pt)[MZ-7WD128...]]
    )
  )
]

I know this is bad and everything else than perfectly centered inside the rectangles. This shows just the first pair of labels. I would fill the rest of the page with more of these.

Is there a way to dangle everything inside a structure that doesn’t require manual positioning of the tables inside the rectangles like it is now?

Thanks in advance!

2

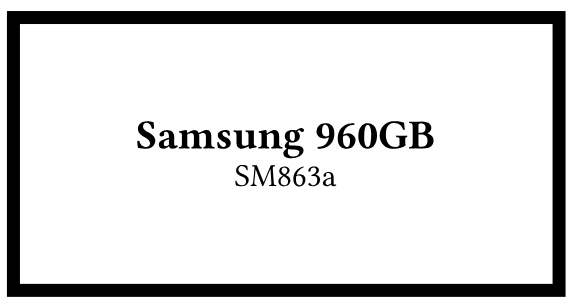

You can put the text in the body of your rect, with center+horizont alignment (to center horizontally and vertically):

#rect(width: 84mm, height: 42mm, stroke: 2mm, {
  set align(horizon+center)
  text(18pt)[*Samsung 960GB*]
  linebreak()
  text(14pt)[SM863a]
})

image572×303 11.6 KB

You can replace the linebreak() with a v(...) of the desired spacing, or put the whole content in a grid (better than a table when you just want a layout without grid lines):

#rect(width: 84mm, height: 42mm, stroke: 2mm, {
  set align(horizon+center)
  grid(
    gutter: 1em,
    text(18pt)[*Samsung 960GB*],
    text(14pt)[SM863a]
  )
})

or using a stack:

#rect(width: 84mm, height: 42mm, stroke: 2mm, {
  set align(horizon+center)
  stack(
    spacing: 1em,
    text(18pt)[*Samsung 960GB*],
    text(14pt)[SM863a]
  )
})
3

Just highlighting the existence of https://typst.app/universe/package/etykett/ which can give some ideas.

4

Thank you guys!

Based on @sijo suggestions, I’m now using

#set page(
  paper: "a4", // 210 × 297 mm
  margin: (left: 15mm, right: 15mm, top: 15mm, bottom: 15mm),
)

#pad(top: 0mm, left: 0mm)[
  #stack(dir: ltr,
    rect(width: 84mm, height: 42mm, stroke: 2mm, {
      set align(horizon+center)
      grid(
        text(28pt)[*Backup 01*],
        v(10mm),
        text(18pt)[Samsung 960GB]
      )
    }),
    12mm,
    rect(width: 84mm, height: 42mm, stroke: 2mm, {
      set align(horizon+center)
      grid(
        text(28pt)[*Backup 02*],
        v(10mm),
        text(18pt)[Seagate Spinpoint 2TB]
      )
    })
  )
]

And I only need to add another pair with a vertical padding of 10mm with the same #pad block, rinse and repeat. For the small stuff I’m doing with it, it’s the perfect solution.

@vmartel08
Thanks for the hint as well! The package itself is a bit overkill for what I’m doing here but I’ll take a look at it anyway ofc^^

Thanks again!
