How to make bullet list item bodies flow like paragraphs?

[magackame]

Hi folks.

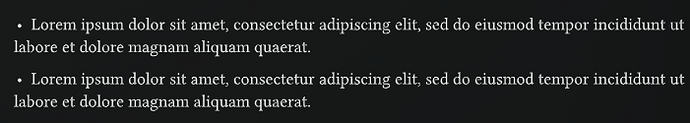

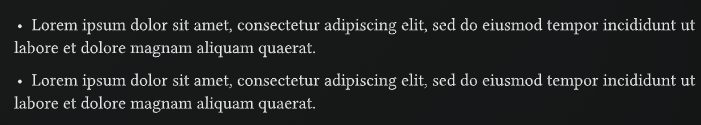

I am trying to make bullet list item bodies flow like paragraphs. That is, when text wrapping occurs, instead of wrapping up to the bullet point I want it to wrap to the left page margin, like a regular paragraph would.

This snippet works, but only for single level lists:

#show list: it => {
  for item in it.children {
    [#it.marker #item.body #parbreak()]
  }
}

- #lorem(20)
- #lorem(20)

If we have a multilevel list:

- #lorem(20)
  - #lorem(20)
  - #lorem(20)
- #lorem(20)
  - #lorem(20)
  - #lorem(20)

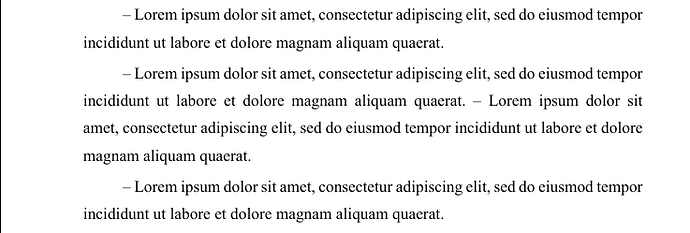

The nested items just append at the end of the top level item.

Inspecting the it.children I see that nested items are wrapped into sequence, but checking with type(item.body) == array is not working. They all have content type.

Any ideas on how to check for nested items or maybe a more elegant solution altogether?

[vmartel08]

Hi @magackame,

this is a beginning…

#show list : set par(hanging-indent: -1em)
- lorem(20)

- lorem(20)

• Note the required space between the two items (to make it not tight, otherwise it doesn’t work).
• There is an issue still opened on enum lists Hanging-indent for enum lists · Issue #5751 · typst/typst · GitHub that may well be indicating this is a dead-end for now… there is probably another member that will come up with some fancier solution to make the multi-level work, but so far I haven’t been able to.

Edit: I could not come up with something clean with your code, it rendered multiple markers in an array, which was not what you sent screenshots of.

[Andrew]

Hi. I also need this, which is why I had to implement it, but now I checked it again, and it didn’t work correctly, so I fixed it:

#let correctly-indent-list-and-enum-items(doc) = {
  let first-line-indent() = if type(par.first-line-indent) == dictionary {
    par.first-line-indent.amount
  } else {
    par.first-line-indent
  }

  show list: li => {
    for (i, it) in li.children.enumerate() {
      let nesting = state("list-nesting", 0)
      let indent = context h((nesting.get() + 1) * li.indent)
      let marker = context {
        let n = nesting.get()
        if type(li.marker) == array {
          li.marker.at(calc.rem-euclid(n, li.marker.len()))
        } else if type(li.marker) == content {
          li.marker
        } else {
          li.marker(n)
        }
      }
      let body = {
        nesting.update(x => x + 1)
        it.body + parbreak()
        nesting.update(x => x - 1)
      }
      let content = {
        marker
        h(li.body-indent)
        body
      }
      context pad(left: int(nesting.get() != 0) * li.indent, content)
    }
  }

  show enum: en => {
    let start = if en.start == auto {
      if en.children.first().has("number") {
        if en.reversed { en.children.first().number } else { 1 }
      } else {
        if en.reversed { en.children.len() } else { 1 }
      }
    } else {
      en.start
    }
    let number = start
    for (i, it) in en.children.enumerate() {
      number = if it.has("number") { it.number } else { number }
      if en.reversed { number = start - i }
      let parents = state("enum-parents", ())
      let indent = context h((parents.get().len() + 1) * en.indent)
      let num = if en.full {
        context numbering(en.numbering, ..parents.get(), number)
      } else {
        numbering(en.numbering, number)
      }
      let max-num = if en.full {
        context numbering(en.numbering, ..parents.get(), en.children.len())
      } else {
        numbering(en.numbering, en.children.len())
      }
      num = context box(
        width: measure(max-num).width,
        align(right, text(overhang: false, num)),
      )
      let body = {
        parents.update(arr => arr + (number,))
        it.body + parbreak()
        parents.update(arr => arr.slice(0, -1))
      }
      if not en.reversed { number += 1 }
      let content = {
        num
        h(en.body-indent)
        body
      }
      context pad(left: int(parents.get().len() != 0) * en.indent, content)
    }
  }
  doc
}

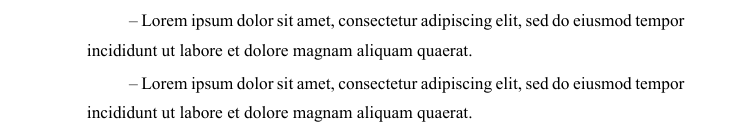

Now it will work like

#lorem(20)

- #lorem(20)

  - #lorem(20)

    - #lorem(20)

      #lorem(20)
- #lorem(20)

- #lorem(20)

#lorem(20)

+ #lorem(20)

  + #lorem(20)

    + #lorem(20)

      #lorem(20)
+ #lorem(20)

+ #lorem(20)

But you don’t have to space them:

#set list(indent: 1em)
#set enum(indent: 1em, full: true)
#set par(justify: true, first-line-indent: (amount: 1em, all: true))

#show: correctly-indent-list-and-enum-items

#lorem(20)
- #lorem(20)
  - #lorem(20)
    - #lorem(20)

      #lorem(20)
- #lorem(20)
- #lorem(20)
#lorem(20)
+ #lorem(20)
  + #lorem(20)
    + #lorem(20)

      #lorem(20)
+ #lorem(20)
+ #lorem(20)

I think I’ve implemented all the features that list/enums have to offer, with exception for tightness and stuff. I don’t use terms because it’s not a thing in documents I make.

[magackame]

The code @Andrew gave works nicely.

Thank you @Andrew @vmartel08!

[fungai2000]

I just came across this, looking for a solution to the same problem. Many thanks to @Andrew for this code.

To the developers: in the future, it would be nice if the first-line indent and the hanging indent could both be settable parameters of the list and enum functions, so as to not require this work around and impact upon other paragraphs.

[Andrew]

Tried to compile a document, and found out that this solution gives an error for PDF/UA-1:

error: PDF/UA-1 error: invalid list (L) structure
    ┌─ file.typ:200:20
    │
200 │         num = context box(
    │ ╭─────────────────────^
201 │ │         width: measure(max-num).width,
202 │ │         align(right, text(overhang: false, num)),
203 │ │       )
    │ ╰───────^
    │
    = hint: list (L) may not contain paragraph (P)
    = hint: this is probably caused by a show rule

error: PDF/UA-1 error: invalid list (L) structure
    ┌─ file.typ:200:20
    │
200 │         num = context box(
    │ ╭─────────────────────^
201 │ │         width: measure(max-num).width,
202 │ │         align(right, text(overhang: false, num)),
203 │ │       )
    │ ╰───────^
    │
    = hint: list (L) may not contain paragraph (P)
    = hint: this is probably caused by a show rule

error: PDF/UA-1 error: invalid list (L) structure
    ┌─ file.typ:200:20
    │
200 │         num = context box(
    │ ╭─────────────────────^
201 │ │         width: measure(max-num).width,
202 │ │         align(right, text(overhang: false, num)),
203 │ │       )
    │ ╰───────^
    │
    = hint: list (L) may not contain paragraph (P)
    = hint: this is probably caused by a show rule

So I can’t provide improved accessibility, basically because Hanging-indent for lists · Issue #5751 · typst/typst · GitHub is not implemented. Though technically/semantically, it still won’t be a paragraph.

---

I just now realized that the two overrides don’t work together, so I can’t nest enum in list. Just updating the second state with a special value that doesn’t modify the numbering/markers behavior is enough, though not very clean.

/// Spacing doesn't work the same way as native solution if par leading and
/// spacing are different.
#let correctly-indent-list-and-enum-items(doc) = {
  let first-line-indent() = if type(par.first-line-indent) == dictionary {
    par.first-line-indent.amount
  } else {
    par.first-line-indent
  }

  show list: li => {
    for (i, it) in li.children.enumerate() {
      let nesting = state("list-nesting", 0)
      let indent = context h((nesting.get() + 1) * li.indent)
      let get-nesting() = calc.div-euclid(nesting.get(), 10)
      let marker = context {
        let n = get-nesting()
        if type(li.marker) == array {
          li.marker.at(calc.rem-euclid(n, li.marker.len()))
        } else if type(li.marker) == content {
          li.marker
        } else {
          li.marker(n)
        }
      }
      let parents = state("enum-parents", ()) // Support enum nesting.
      let body = {
        parents.update(arr => arr + (-1,))
        nesting.update(x => x + 10)
        it.body + parbreak()
        nesting.update(x => x - 10)
        parents.update(arr => arr.slice(0, -1))
      }
      let content = {
        marker
        h(li.body-indent)
        body
      }
      context pad(left: int(nesting.get() != 0) * li.indent, content)
    }
  }

  show enum: en => {
    let start = if en.start == auto {
      if en.children.first().has("number") {
        if en.reversed { en.children.first().number } else { 1 }
      } else {
        if en.reversed { en.children.len() } else { 1 }
      }
    } else {
      en.start
    }
    let number = start
    for (i, it) in en.children.enumerate() {
      number = if it.number != auto { it.number } else { number }
      if en.reversed { number = start - i }
      let parents = state("enum-parents", ())
      let get-parents() = parents.get().filter(x => x >= 0)
      let indent = context h((get-parents().len() + 1) * en.indent)
      let num = if en.full {
        context numbering(en.numbering, ..get-parents(), number)
      } else {
        numbering(en.numbering, number)
      }
      let max-num = if en.full {
        context numbering(en.numbering, ..get-parents(), en.children.len())
      } else {
        numbering(en.numbering, en.children.len())
      }
      num = context box(
        width: measure(max-num).width,
        align(right, text(overhang: false, num)),
      )
      let list-nesting = state("list-nesting", 0) // Support list nesting.
      let body = {
        parents.update(arr => arr + (number,))
        list-nesting.update(x => x + 1)
        it.body + parbreak()
        list-nesting.update(x => x - 1)
        parents.update(arr => arr.slice(0, -1))
      }
      if not en.reversed { number += 1 }
      let content = {
        num
        h(en.body-indent)
        body
      }
      context pad(left: int(parents.get().len() != 0) * en.indent, content)
    }
  }
  doc
}
