Non rectangular boxes/cells

Questions
1

Is there a way to make “non square boxes” in typst?

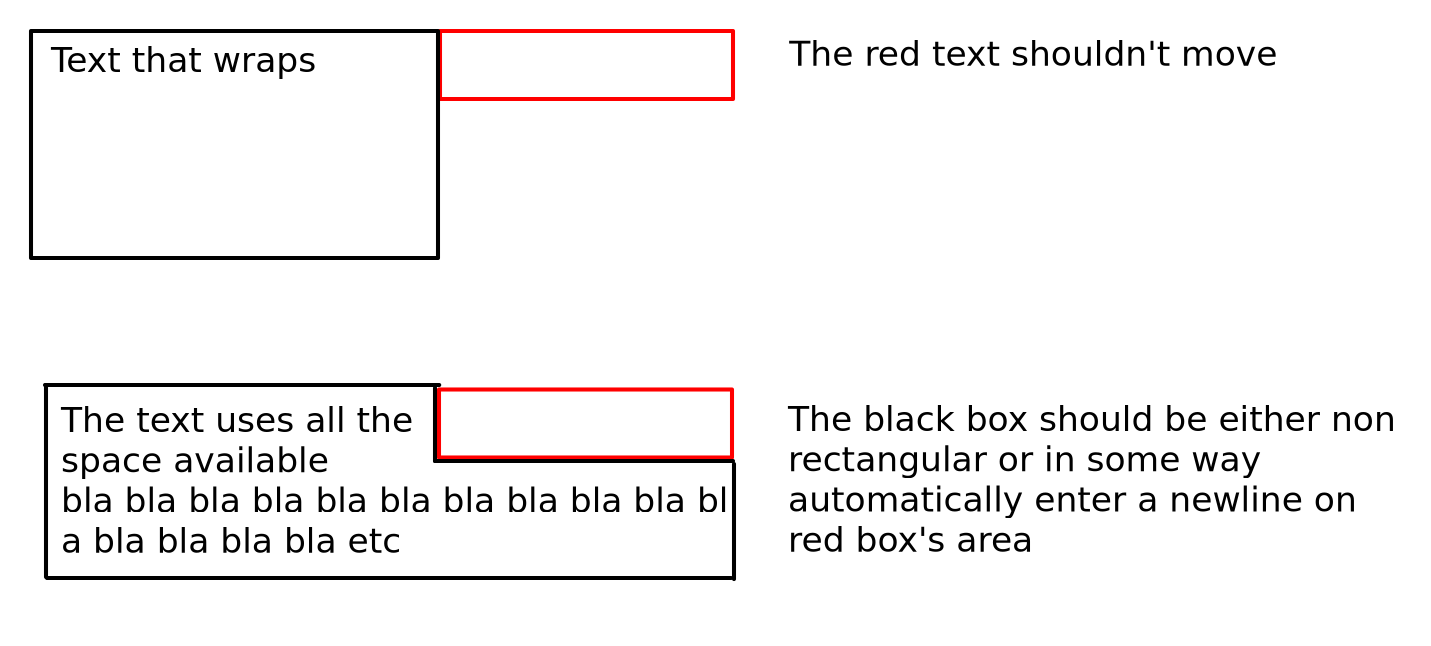

Here’s an image as reference

image1431×646 57.6 KB

2

There is curve for arbitrary shapes and drawing.

There are no text wrapping in Typst, so you can use meander to do this automatically:

#import "@preview/meander:0.3.0"

#let special-box(special, main) = rect(meander.reflow({
  import meander: *
  placed(top + right, dx: 5pt, dy: -5pt, block(stroke: white + 1.5pt, rect(
    stroke: (top: none, right: none, rest: 1pt),
    outset: 0.5pt,
    inset: 0.5pt,
    rect(stroke: red, outset: (top: 0.5pt, right: 0.5pt))[#special],
  )))
  container()
  content[#main]
}))

#special-box[#lorem(5)][
  #lorem(57)
]

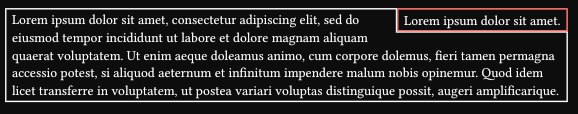

image578×114 21.9 KB

I don’t know how to make it a single shape, so I used some stroke hackery + inset/outset adjustments to get the ideal output.


To make it more readable, I used a chain of show rule wrappers:

#import "@preview/meander:0.3.0"

#let special-box(special, main) = rect(meander.reflow({
  import meander: *
  placed(top + right, dx: 5pt, dy: -5pt, {
    show: block.with(stroke: white + 1.5pt) // no default 5 pt inset
    show: rect.with(
      stroke: (top: none, right: none, rest: 1pt),
      outset: 0.5pt,
      inset: 0.5pt,
    )
    show: rect.with(stroke: red, outset: (top: 0.5pt, right: 0.5pt))
    [#special]
  })
  container()
  content[#main]
}))

#special-box[#lorem(5)][
  #lorem(57)
]

You can even do stuff like #special-box(6, 9).

3 Likes
3

Thanks! this is great!
