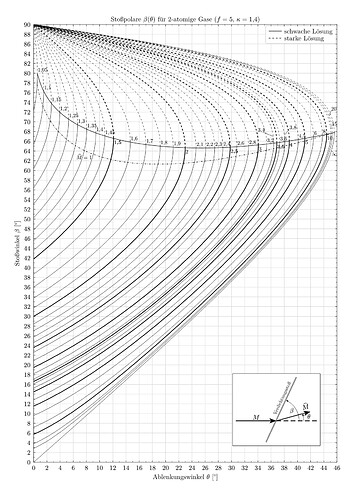

I created a shock polar/θ-β-M diagram using Lilaq (for all the plotting) and CeTZ (for the little diagram in the bottom right).
All calculations are done in Typst, so one can easily generate the diagram for other gases.
The repository can be found here.
10 Likes
Mc-Zen
2
That looks very professional. Good work!
1 Like
This deserves to be submitted to https://diagrams.janosh.dev/!
3 Likes
Seems like there are only CeTZ diagrams currently. I will give it a try though :)
It’s published now. Thanks for making me aware!
