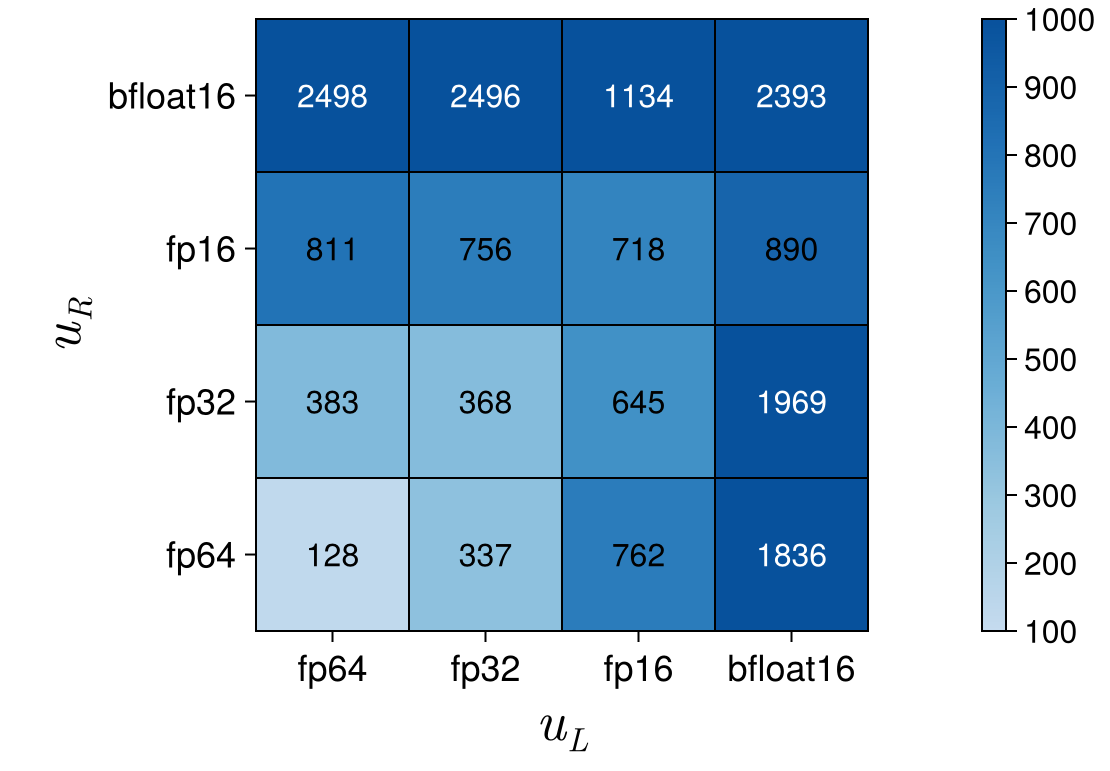

Hi everyone! In the lilaq function colormesh, is it possible to add text to each cell, such as the data itself? See an example below:
So far, I haven’t been able to figure it out. Thanks!
Hi @Thomas1 !

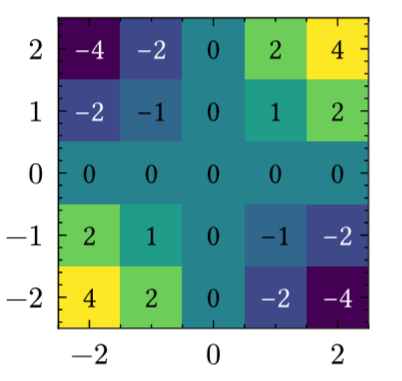

You can achieve this with lq.place analogously to the bar example Bar plot with numbers − Lilaq.
#let x = lq.arange(-2, 3)
#let y = lq.arange(-2, 3)
#let mesh = lq.mesh(x, y, (x, y) => x * y)
#lq.diagram(
width: 4cm, height: 4cm,
lq.colormesh(x, y, mesh),
..range(x.len())
.map(col => range(y.len()).map(row => {
let color = black
let value = mesh.at(col).at(row)
if value <= -2 {
color = white
}
lq.place(
x.at(col),
y.at(row),
text(color, str(value))
)
})
).join()
)
1 Like
