Firstly, apologies if this belongs on another site like the computer graphics stack exchange.

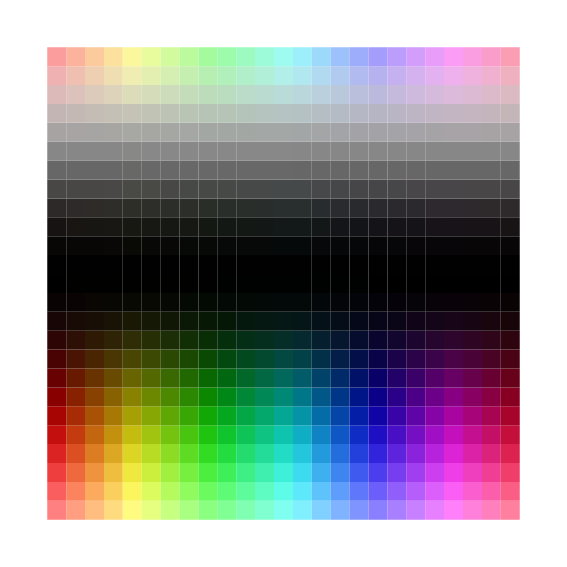

For some mathematical visualizations, I am trying to find a way to smoothly color the torus in such a way that each point gets a unique color. I tried starting with using the hue and lightness (based on a stackexchange post I can’t find anymore. On the square, this looks like:
#import "@preview/cetz:0.4.2"
#set page(
width: auto,
height: auto,
margin: 1mm,
)
#cetz.canvas({
import cetz.draw: *
let steps = 25
let step-size = 1.0 / steps
// Pre-compute colors to avoid recomputation
let colors = {
let cols = ()
for i in range(steps + 1) {
let x = i * step-size
let row = ()
for j in range(steps + 1) {
let y = j * step-size
let hue = x * 360deg
let saturation = 50% + 50% * calc.sin(2 * calc.pi * y)
let value = 50% + 50% * calc.cos(2 * calc.pi * y)
row.push(color.hsv(hue, saturation, value))
}
cols.push(row)
}
cols
}
// Draw rectangles with precomputed colors
for i in range(steps) {
for j in range(steps) {
let x = i * step-size
let y = j * step-size
rect(
(x, y),
(x + step-size, y + step-size),
fill: colors.at(i).at(j),
stroke: none
)
}
}
})
(as a sidenote, I’d also like to figure out why some white lines are still being made here despite me setting the stroke to none). Note that, on the square, smoothly coloring the torus requires that the right edge matches the left edge colors, and similarly between the top and bottom edges.

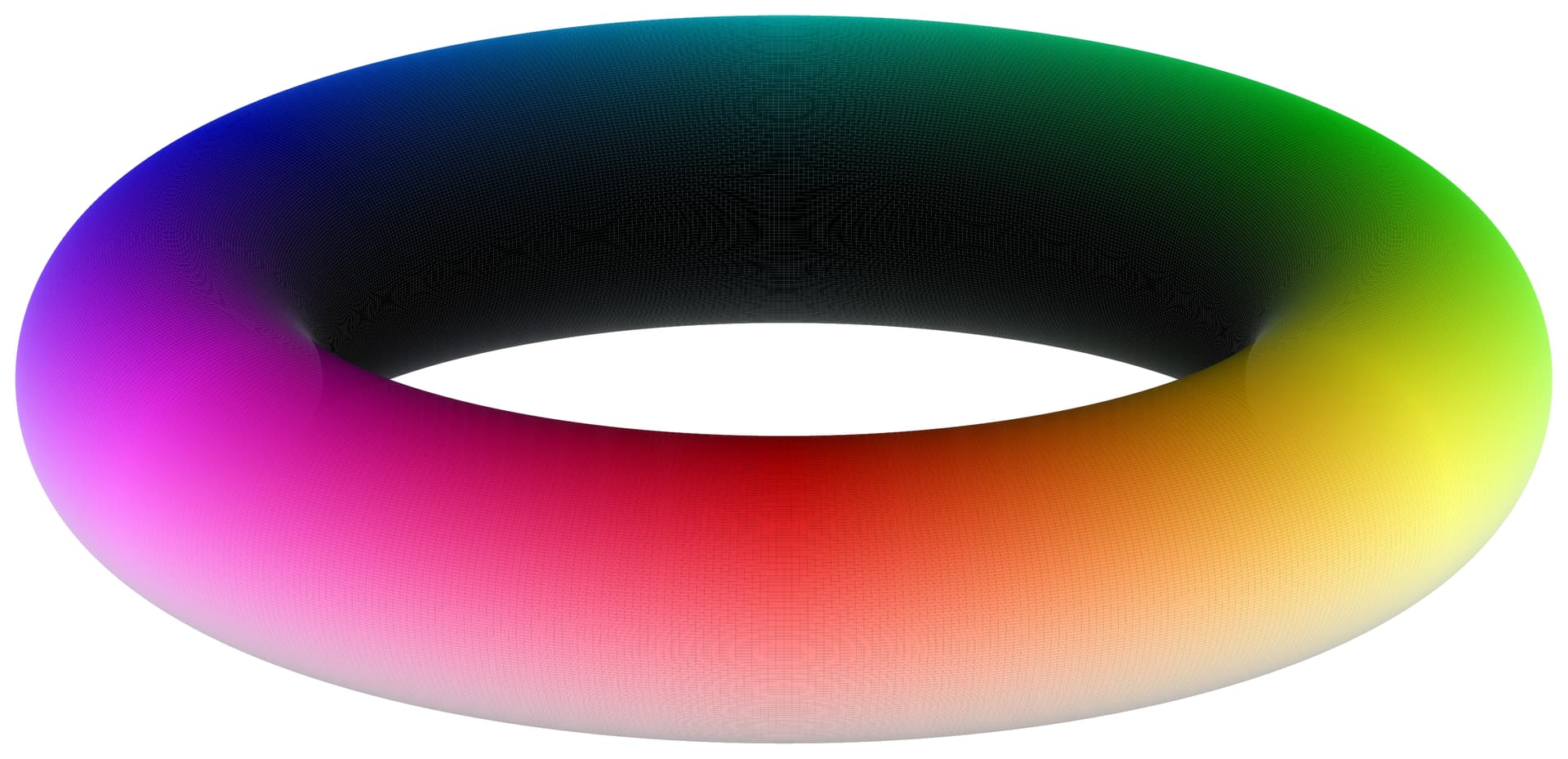

On the torus, this looks like:
#import "@preview/cetz:0.4.2"
#set page(
width: auto,
height: auto,
margin: 1mm,
)
#cetz.canvas({
import cetz.draw: *
let R = 4 // Major radius
let r = 1 // Minor radius
let theta-divisions = 600
let phi-divisions = 300
let get-torus-point(theta, phi) = (
(R + r * calc.cos(phi)) * calc.cos(theta),
(R + r * calc.cos(phi)) * calc.sin(theta),
r * calc.sin(phi)
)
// Pre-compute color grid
let colors = {
let cols = ()
for i in range(theta-divisions + 1) {
let x = i / theta-divisions // normalized theta coordinate
let row = ()
for j in range(phi-divisions + 1) {
let y = j / phi-divisions // normalized phi coordinate
// Your doubly periodic coloring
let hue = x * 360deg
let saturation = 50% + 50% * calc.sin(2 * calc.pi * y)
let value = 50% + 50% * calc.cos(2 * calc.pi * y)
row.push(color.hsv(hue, saturation, value))
}
cols.push(row)
}
cols
}
ortho(x: -70deg, y: 0deg, z: -90deg, sorted: true, {
for i in range(theta-divisions) {
for j in range(phi-divisions) {
let theta1 = (2 * calc.pi * i) / theta-divisions
let theta2 = (2 * calc.pi * (i + 1)) / theta-divisions
let phi1 = (2 * calc.pi * j) / phi-divisions
let phi2 = (2 * calc.pi * (j + 1)) / phi-divisions
let point1 = get-torus-point(theta1, phi1)
let point2 = get-torus-point(theta2, phi1)
let point3 = get-torus-point(theta2, phi2)
let point4 = get-torus-point(theta1, phi2)
line(
point1,
point2,
point3,
point4,
close: true,
stroke: none,
fill: colors.at(i).at(j)
)
}
}
})
})
This is close, but the white and black colors form a couple singular points where there are duplicate colors along lines.
I don’t know if the structure of color spaces simply prohibits such a 2d gradient setup for the square/torus, but I can’t find anything in the literature, especially if I try to add on the additional constraint of being CVD friendly.
Thus, does anyone have any ideas for making a 2D gradient for the torus that:
- gives each point a unique color,
- smoothly colors the torus, with no discontinuities along lines, (and, ideally)
- maintains CVD friendliness?
Thank you for your time.

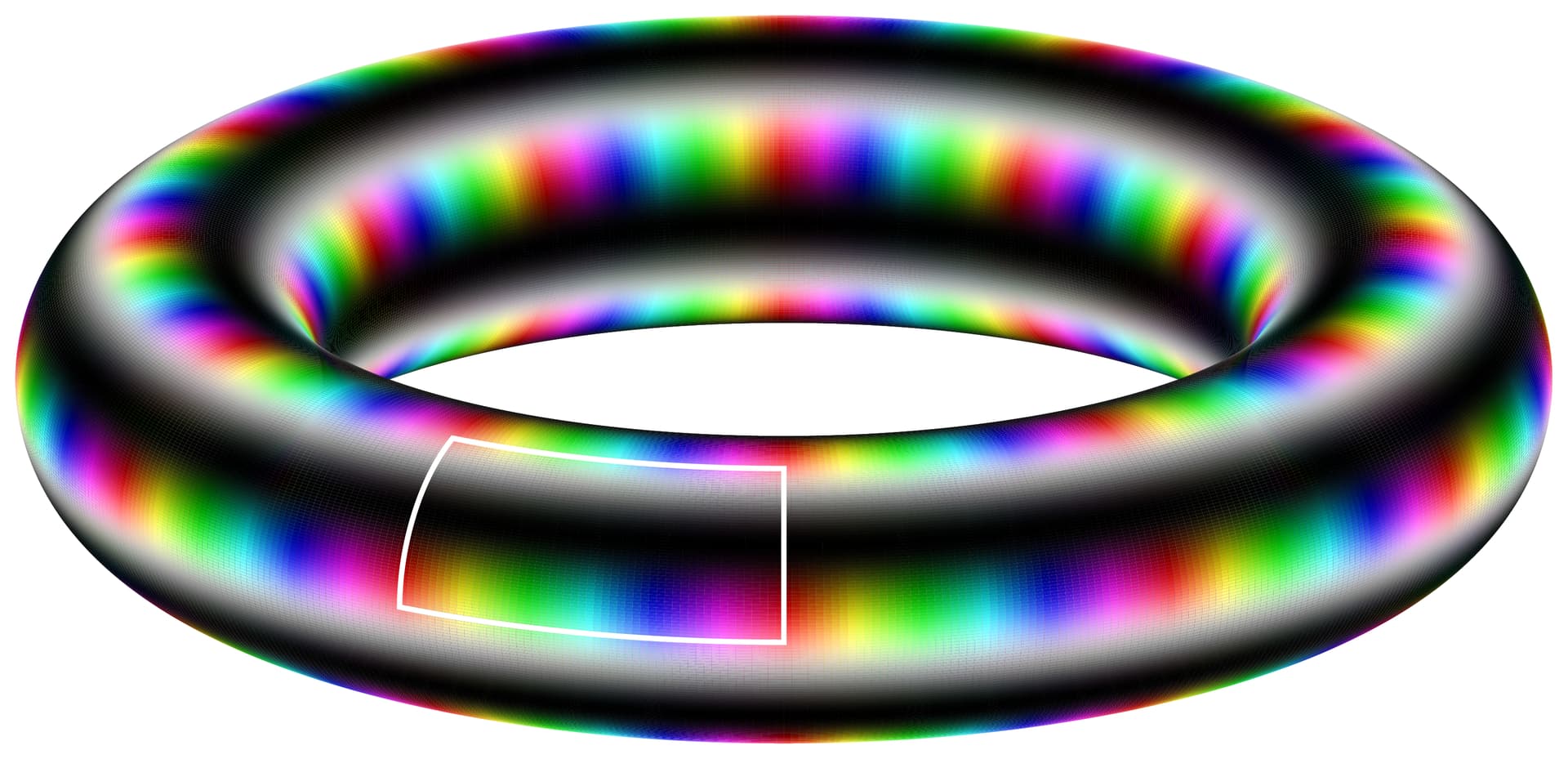

For anyone wondering why I really don’t want even a single line of discontinuous colors, it’s because I would like to eventually provide smooth tilings of the torus by applying the square coloring multiple times, like below:
