What is the proper way of fixing the space between the supplement and the number of a reference and a caption?

Questions
1

The following code showcases the default and adjusted behavior of the “gap” between a figures supplement and its number in text as well as the caption.

#set page(width: 10cm)
#set par(justify: true)
Short line with ref to: @l1 #linebreak(justify: true)

#show figure: align.with(left)
#figure(
  table([Example]),
  caption: [long text wich gets justified and stretches or squishes the caption such that the figures number might appear to close or too far from the supplement],
)<l1>

#show std.figure.caption: it => {
  context [#box([#it.supplement~#it.counter.display()])#it.separator#it.body]
}

#show ref: it => {
  box(it)
}

Short line with ref to: @l2 #linebreak(justify: true)

#figure(
  table([Example 2]),
  caption: [long text wich gets justified and stretches or squishes the caption such that the figures number might appear to close or too far from the supplement],
)<l2>

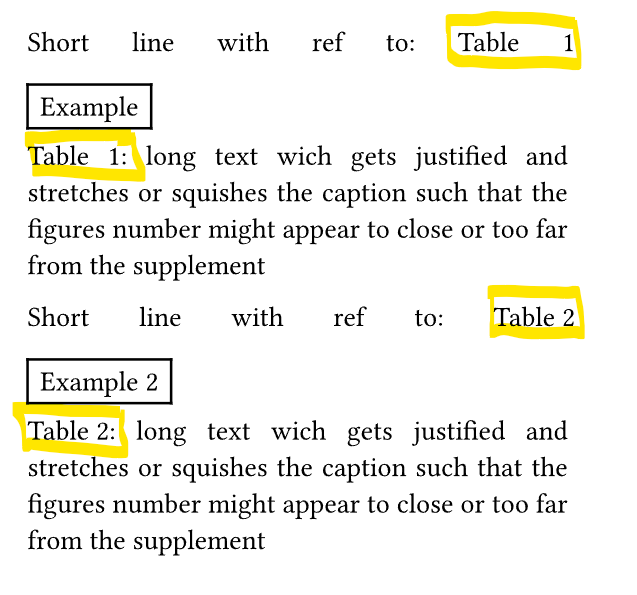

As you can see in the following screenshot, without modifications the gap between the Supplement and the number will shrink or stretch to justify the line.

image637×595 45 KB

As demonstrated this can be fixed with show rules, but they seem overly complex for such a simple goal which, in my humble opinion, should be the default.

Is there an easiery way which I’m overlooking? Is my approach the proper way of doing this?

2

This is how I do it aswell, I don’t think there is another way

1 Like
3

I would do it like this too.

Your code can however be simplified like this:

#show ref: box
4

yep, i realized that, but this is not the bad part ;)

5

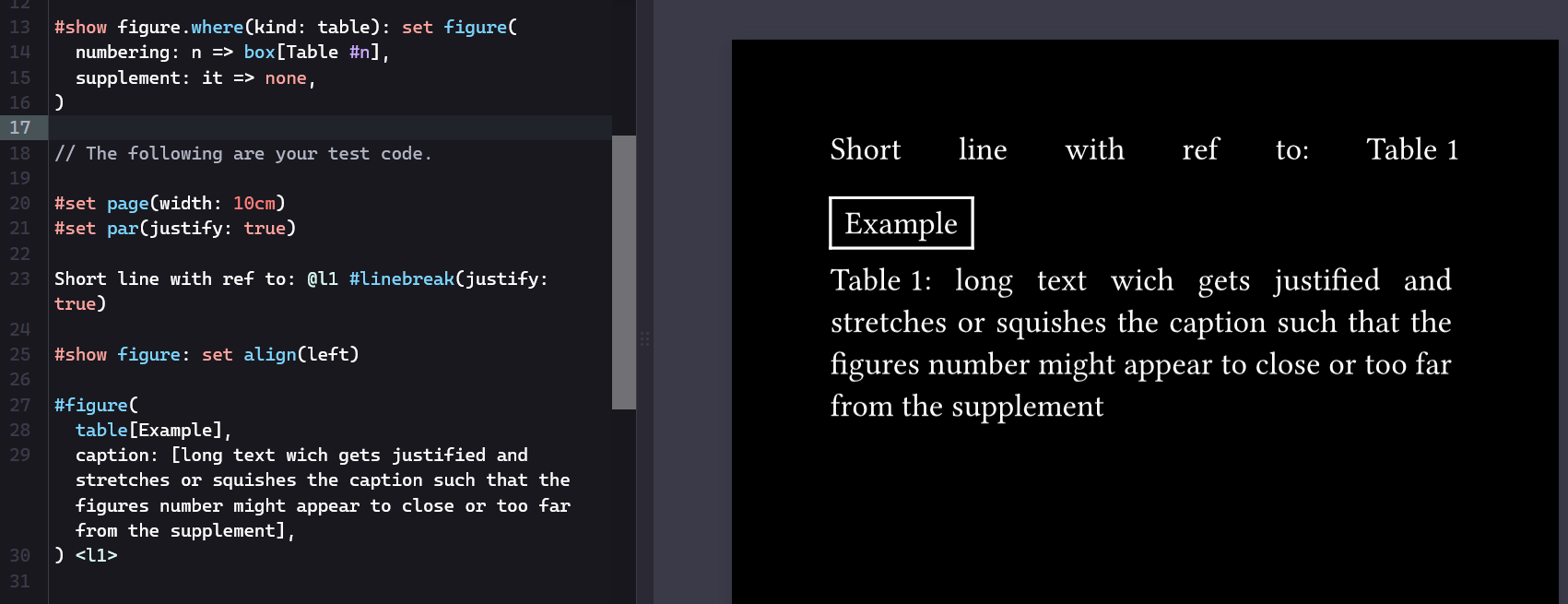

Here’s the hack:

#show figure.where(kind: table): set figure(
  numbering: n => box[Table #n],
  supplement: it => none,
)

图片1701×655 171 KB

In your case, it is merely an aesthetic consideration.
For languages that don’t use a spaces here, or languages that put the supplement after the number, it’s a daily pain about correctness…

Previous discussions:

1 Like
6

Good idea, but since I need this to work with both tables and images some adjustments to your example are nessessary.
I’ll play around with it some more and see what I like most.
This code won’t be user-facing anyway so it’s not really an issue.

1 Like
