FIY, showing a sample output but not giving the source to instantly reproduce it is not helpful. Also, unrelated to a topic question must be made as a separate topic. Only some clarifying questions/better solutions (i.e., the useful stuff) can be posted into an existing topic.

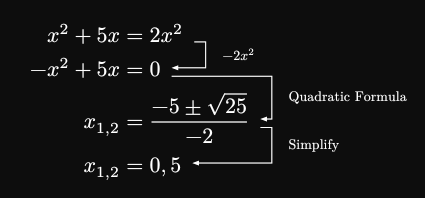

I went ahead and copied an example from How to add arrows between equation lines, like latex `witharrows`, in Typst? - #5 by Andrew, then figured out what the new API is, and thankfully it also shows the issue.
The right in elbow-arrow is used for 1 of 4 points, hence the problem. Either use it for p3 too, or make it relative to p2, or find perpendicular intersection point from p2 and p4.
#import "@preview/mannot:0.3.0": annot-cetz, mark
#import "@preview/cetz:0.4.2"
#let mark-line(tag) = mark(tag: tag)[]
#let logical-step(from, to, shift: 0.2, body) = {
let elbow-arrow(beg, end, right, body) = {
import cetz.draw: content, line, set-style
let p1 = (rel: (0.2, 0), to: beg)
let p2 = (rel: (right + 0.2 + shift, 0), to: beg)
let p4 = (rel: (0.2, 0.15), to: end)
let p3 = (p2, "|-", p4)
let mid = (rel: (0.1, 0), to: (p2, 50%, p3))
set-style(mark: (end: ">", fill: black, scale: 0.4), stroke: 0.5pt)
line(p1, p2, p3, p4)
content(mid, anchor: "west", pad(0.5em, body))
}
let arrow-coords(ctx, ..coords, shift: 0pt) = {
let (_, ..coords) = cetz.coordinate.resolve(ctx, ..coords)
let right-most = calc.max(..coords.map(v => v.first()))
(coords, right-most)
}
let mod-arrow(f, t, r, body) = elbow-arrow(f, t, r, {
set text(size: 7pt)
set par(leading: 0.3em)
body
})
return annot-cetz((from, to), cetz, cetz.draw.get-ctx(ctx => {
let ((start, end), right) = arrow-coords(ctx, str(from), str(to))
// let (beg, end) = arrow-coords(ctx, "f1", "f2")
mod-arrow(start, end, right)[#body]
}))
}
$
x^2 + 5x & = 2x^2 #mark-line(<a>) \
-x^2 + 5x & = 0 #mark-line(<b>) \
x_(1,2) & = (-5 plus.minus sqrt(25)) / (-2) #mark-line(<c>) \
x_(1,2) & = 0, 5 #mark-line(<d>) \
#logical-step(<a>, <b>)[$-2x^2$]
#logical-step(<b>, <c>)[Quadratic Formula]
#logical-step(<c>, <d>)[Simplify]
$
