Vertial alignment of inline math in HTML export

[LinTianchuan]

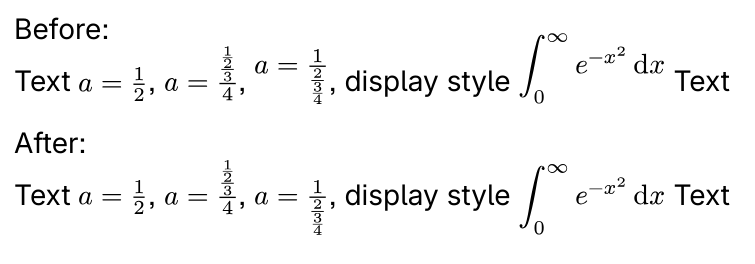

I spent some time tweaking the vertical alignment of inline math formulas. Current solution is still a bit hacky, but it works reasonably. Here is a comparison of the results with and without the y-shift adjustment:

The code:

#let inline-math-count = counter("inline-math-count")
#let shift-inline-math(body) = context {
  // Allocate a new state for each call to this function
  let y-shift = state("y-shift" + str(inline-math-count.get().first()), 0pt)
  inline-math-count.step()
  let begin-loc = here()
  // The wrapper ensures that the viewbox of rendered SVG math matches its bounding box.
  let wrapper = text.with(top-edge: "bounds", bottom-edge: "bounds")
  // For debugging: draw red box around the wrapper
  // let wrapper = it => box(wrapper(it), stroke: red)
  html.elem(
    "span",
    html.frame(wrapper(
      // Add invisible elements below the math body to measure its bottom position.
      math.attach(math.limits(body.body), b: pad([#none<_math_bot>], -1em))
        + sym.wj
        + math.attach(math.limits([#none]), b: pad([#none<_math_ref_bot>], -1em)),
    )),
    attrs: (
      // Rendered SVG defines its width & height in "em" units,
      // so we also convert y-shift relative to text size in "em" units.
      style: "vertical-align: -" + str(calc.round(y-shift.final() / text.size, digits: 2)) + "em;",
      class: "typst-inline-math",
    ),
  )
  context {
    let end-loc = here()
    let math-bot = query(
      selector(<_math_bot>).after(begin-loc).before(end-loc),
    )
    let math-ref-bot = query(
      selector(<_math_ref_bot>).after(begin-loc).before(end-loc),
    )
    if math-ref-bot.len() >= 1 {
      let y1 = math-bot.at(0).location().position().y
      let y2 = math-ref-bot.at(0).location().position().y
      let new-y-shift = y1 - y2
      if new-y-shift > y-shift.get() + 0.1pt {
        y-shift.update(old => new-y-shift)
      }
    }
  }
}

#let html-export-template(doc) = context {
  if target() != "html" {
    return doc
  }
  show math.equation.where(block: false): it => {
    // The target() function can be used to apply html.frame selectively only
    // when the export target is HTML.
    // When html.frame is applied to a figure, the target() for all the elements
    // inside will be set to "paged" instead.
    // https://github.com/typst/typst/issues/721#issuecomment-3064895139
    if target() == "html" {
      shift-inline-math(it)
    } else {
      it
    }
  }
  show math.equation.where(block: true): it => {
    html.elem(
      "div",
      html.frame(it),
      attrs: (class: "typst-display-math"),
    )
  }
  // Wrap code blocks in a div for styling
  show raw.where(block: true): it => {
    html.elem(
      "div",
      it,
      attrs: (class: "typst-code-block"),
    )
  }
  doc
}

The post

How to align baselines of display equations in tables?

Continuing on the stubborn path - I made the bounding box measurement and baseline adjust code work (based on mannot’s bounding boxes ). The nice part with it is that single-line text and equations can be made to line up. It works in tables with either top or bottom alignment. [baseline alignment table] (The custom baseline refer to that the numerator and denominator are marked as being on the baseline respectively.) The major challenge is to avoid the layout converge…

helps a lot. Many thanks to @bluss and mannot package. I adopted a similar approach to measure the y-shift.

See more math formula samples in my blog:

Typst HTML Export with Math Support | 1024th

[ecbc]

The result is good, but the compile time become very long

[LinTianchuan]

Thanks for feedback. Can you share an example and the compilation time (with and without y-shift correction)? Does watch help in reducing re-compilation time?

I suspect that the query function may break some locality and cause performance issue.

[ecbc]

@LinTianchuan

reducing

I should have been more specific. Compiling multiple files (total 900 kb) using an old version of shiroa and --mode static-html, now takes 4m 15s, compared to just a few seconds before.

[LinTianchuan]

I optimized the code, and performance is now much better on my test document. The results are:

• SVG math without y-shift correction: 1.7 s
• Old y-shift implementation: 55 s
• New y-shift implementation: 4.7 s

I also tested on larger documents; the runtime remains roughly three times the baseline and appears to scale linearly. In contrast, the old method is clearly super-linear. I’m not sure whether the behavior is quadratic or worse, as it easily runs out of memory on my 16 GB machine.

The new method uses a global query call and calculates the y-shifts for all inline maths. This is inspired by the post:

How to optimize a `query` that leads to severe performance problems?

Hey I’m working with some fairly large documents (up to 1000 pages) where the headers must guide through the readers the sections, chapters and paragraphs. (Example: Section 3 · Chap. F · Par. 25 — Section 3 · Chapter G · Par. 2) Thanks to the support of three very helpful members here, I was able to implement a solution with query like so: How to get the number of the first and last paragraph on a page and show the result in the header? The main part to get the paragraph numbe…

The code is below.

#let math-bot-label = label("_math_bot_")
#let math-ref-bot-label = label("_math_ref_bot_")

#let y-shifts = state("y-shifts", ())
#let inline-math-count = counter("inline-math-count")

#let shift-inline-math(body) = context {
  let formula-cnt = inline-math-count.get().first()
  inline-math-count.step()
  let begin-loc = here()
  // The wrapper ensures that the viewbox of rendered SVG math matches its bounding box.
  let wrapper = text.with(top-edge: "bounds", bottom-edge: "bounds")
  // For debugging: draw red box around the wrapper
  // let wrapper = it => box(wrapper(it), stroke: red)
  html.elem(
    "span",
    html.frame(wrapper(
      // Add invisible elements below the math body to measure its bottom position.
      math.attach(math.limits(body.body), b: pad([#none#math-bot-label], -1em))
        + sym.wj
        + math.attach(math.limits([#none]), b: pad([#none#math-ref-bot-label], -1em)),
    )),
    attrs: (
      // Rendered SVG defines its width & height in "em" units,
      // so we also convert y-shift relative to text size in "em" units.
      style: "vertical-align: -"
        + str(calc.round(y-shifts.final().at(formula-cnt, default: 0pt) / text.size, digits: 2))
        + "em;",
      class: "typst-inline-math",
    ),
  )
}

#let html-export-template(doc) = context {
  if target() != "html" {
    return doc
  }
  show math.equation.where(block: false): it => {
    // The target() function can be used to apply html.frame selectively only
    // when the export target is HTML.
    // When html.frame is applied to a figure, the target() for all the elements
    // inside will be set to "paged" instead.
    // https://github.com/typst/typst/issues/721#issuecomment-3064895139
    if target() == "html" {
      shift-inline-math(it)
    } else {
      it
    }
  }
  show math.equation.where(block: true): it => {
    html.elem(
      "div",
      html.frame(it),
      attrs: (class: "typst-display-math"),
    )
  }
  // Wrap code blocks in a div for styling
  show raw.where(block: true): it => {
    html.elem(
      "div",
      it,
      attrs: (class: "typst-code-block"),
    )
  }
  doc
  // After the whole document, calculate the y-shift for every inline math.
  // This reduces the number of `query` calls, improving performance.
  context {
    let math-bots = query(math-bot-label)
    let math-ref-bots = query(math-ref-bot-label)
    if math-bots.len() == inline-math-count.get().first() {
      assert(math-bots.len() == math-ref-bots.len())
      let new-y-shifts = math-bots
        .zip(math-ref-bots, exact: true)
        .map(pair => {
          let (math-bot, math-ref-bot) = pair
          let y1 = math-bot.location().position().y
          let y2 = math-ref-bot.location().position().y
          y1 - y2
        })
      y-shifts.update(old => new-y-shifts)
    }
  }
}

[ecbc]

It seems that the long compile time is due to typst 0.13 used by the old version of shiroa. After updating deps about typst to 0.14, the old y-shift code cost 6.8s, the new code cost 3.3s, without y-shift cost 1.4s
