Why does a citation in a figure caption get numbered in the wrong order?

[Maximilian]

I am writing a thesis and use the bibliography to cite my sources.

bibliography(title: "bibliography", "../bibliography.bib")

And want to use the ieee style which is default. But now the problem is that I am first cite in the text an then I am using a cite in a figure/image like this:

blablabla #cite(<source1>).
later...
#figure(
  image("../images/Logo1.png", width: 40%),
  kind: image,
  caption: [Company Logo #cite(<logo>)]
)

Now the problem is that the figure get the [1] and in the text it gets [2]. Thats wrong because the one in the text is the first one cited.
I dont know if typst is rendering it earlier or something?

I hope someone can help

[vmartel08]

Hi there @Maximilian,

In order to help us help you, could you please:

• mark your code appropriately for ease of reading and copy/pasting. You can syntax-highlight Typst code by wrapping it in ` ```typ … ````.

• ensure you provide a minimum working example (MWE) that we could try to compile and then provide insight.

How to post in the Questions category

Your questions about using Typst and the web app go in this category. This category should be a useful resource for both those who post questions and those who later search it for answers. To get there, we ask you to keep in mind the following if you ask a question: The Basics Each post should contain one distinct question on Typst. If you have multiple questions, do not hesitate to create multiple posts! Posts that are discussions or otherwise not questions looking for help should go into the…

Thanks for your cooperation

[vmartel08]

To give you a hint, this would be an example of a MWE, which compiles, and which is quoted with back ticks.

#let bib-file-text = ```bib
@article{doe2020,
  author = {John Doe},
  title = {An IEEE Example},
  journal = {Journal of Examples},
  year = {2020}
}

@article{smith2025,
  author = {Bob Smith},
  title = {A Typst Example},
  journal = {Journal of Examples},
  year = {2025}
}

```.text

#outline(target: figure.where(kind: image))

First cited #lorem(5) #cite(<doe2020>, form: "prose").

#figure(
  rect(), //image(“…/images/Logo1.png”, width: 40%),
  caption: [Second cited #cite(<smith2025>, form:"prose")]
)

#bibliography(bytes(bib-file-text), style: "ieee")
//#bibliography(bytes(bib-file-text), style: "ieee")

@Maximilian

Now the problem is that the figure get the [1] and in the text it gets [2]. Thats wrong because the one in the text is the first one cited.

Note that in the previous example, this renders as expected with [1] in all cases.

EDIT: Added image outline to the MWE.

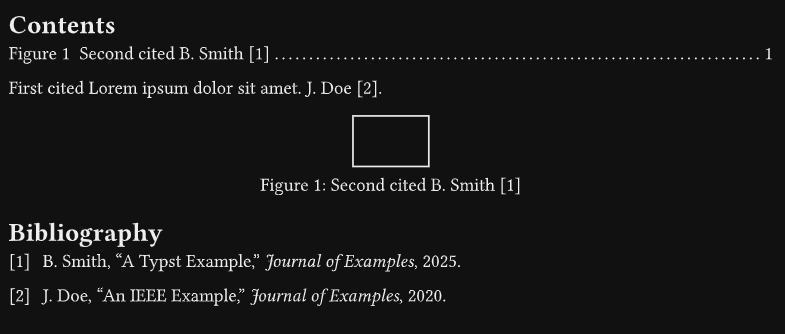

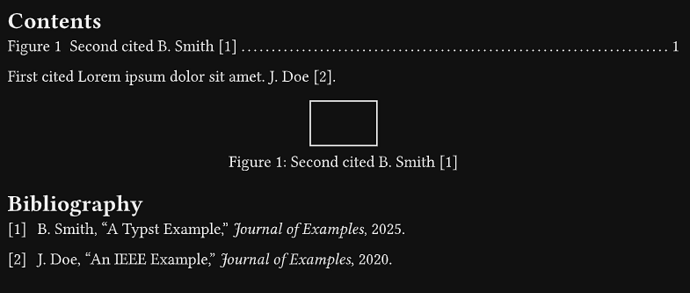

EDIT EDIT: Now we can reproduce your problem by moving the image outline at the beginning.

@PgBiel has quoted the proper way to solve.

[Maximilian]

But in my case the text and the figure cite got two different sources.
I want the image which is citing later to have the [2] and the text one [1].
But in my case its the other way around

[vmartel08]

@vmartel08

In order to help us help you, could you please:

• mark your code appropriately for ease of reading and copy/pasting. You can syntax-highlight Typst code by wrapping it in ` ```typ … ````.
• ensure you provide a minimum working example (MWE) that we could try to compile and then provide insight.

Please see above. Describing the issue is good, but providing an example of the problem is easier.

[PgBiel]

It sounds like you have may have a figure outline, causing the citation to appear at the outline, such that it comes before the citation in your text. See this for a fix: How to have different text shown in figure caption and in outline? - #2 by janekfleper

[vmartel08]

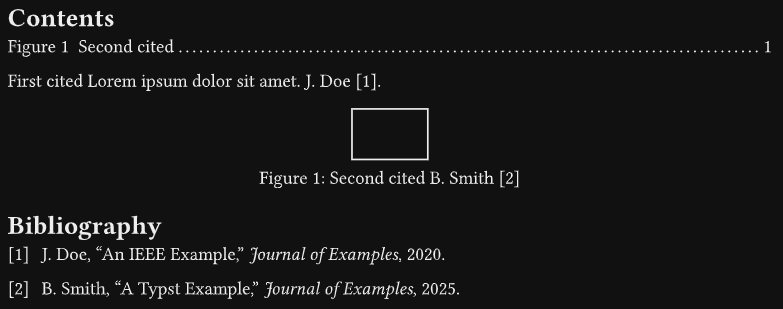

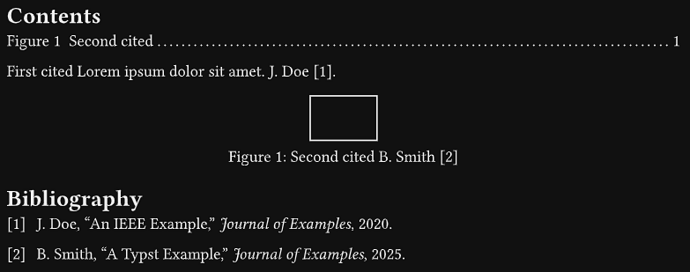

Indeed, adding this:

#show outline.where(target: figure.where(kind: image)): it => {
  show outline.entry: it => {
    show cite: it => { }
    it
  }
  it
}

solves the problem.

Thanks @PgBiel, I couldn’t understand the issue properly.
